Nomad Stove Large Flashing Kit

 Simplify installation with the perfect fit for the Nomad Double Insulated Flue

Designed specifically for use with the Nomad Double Insulated Flue, our Large Flashing Kit makes tent stove setups easier and safer. Its generous size and pre-marked cutting lines reduce the risk of costly mistakes, ensuring a precise fit every time.

Important Compatibility Note

• This Large Flashing Kit is not compatible with the standard 60mm Nomad flue sections.

• For standard flue sizes, please use the Standard Nomad Flashing Kit.

• The Large Flashing Kit fits flues ranging from 75mm to 160mm diameter and is designed to work perfectly with the custom flue flap on all PRO Mesh tents.

Easy Installation

1. Cut the marked hole on the silicone collar to your preferred size and position inside your tent.

2. Insert the flue pipe through the flexible silicone collar.

3. Secure the collar in place using the included stainless steel bolts, locking nuts, and washers.

The silicone collar’s flexibility allows installation even at a 45-degree angle, adapting to your setup.

Optional Accessory

• A perspex cover is available separately to seal the flue hole when the stove is not in use — allowing natural light in while keeping your tent protected.

What’s Included

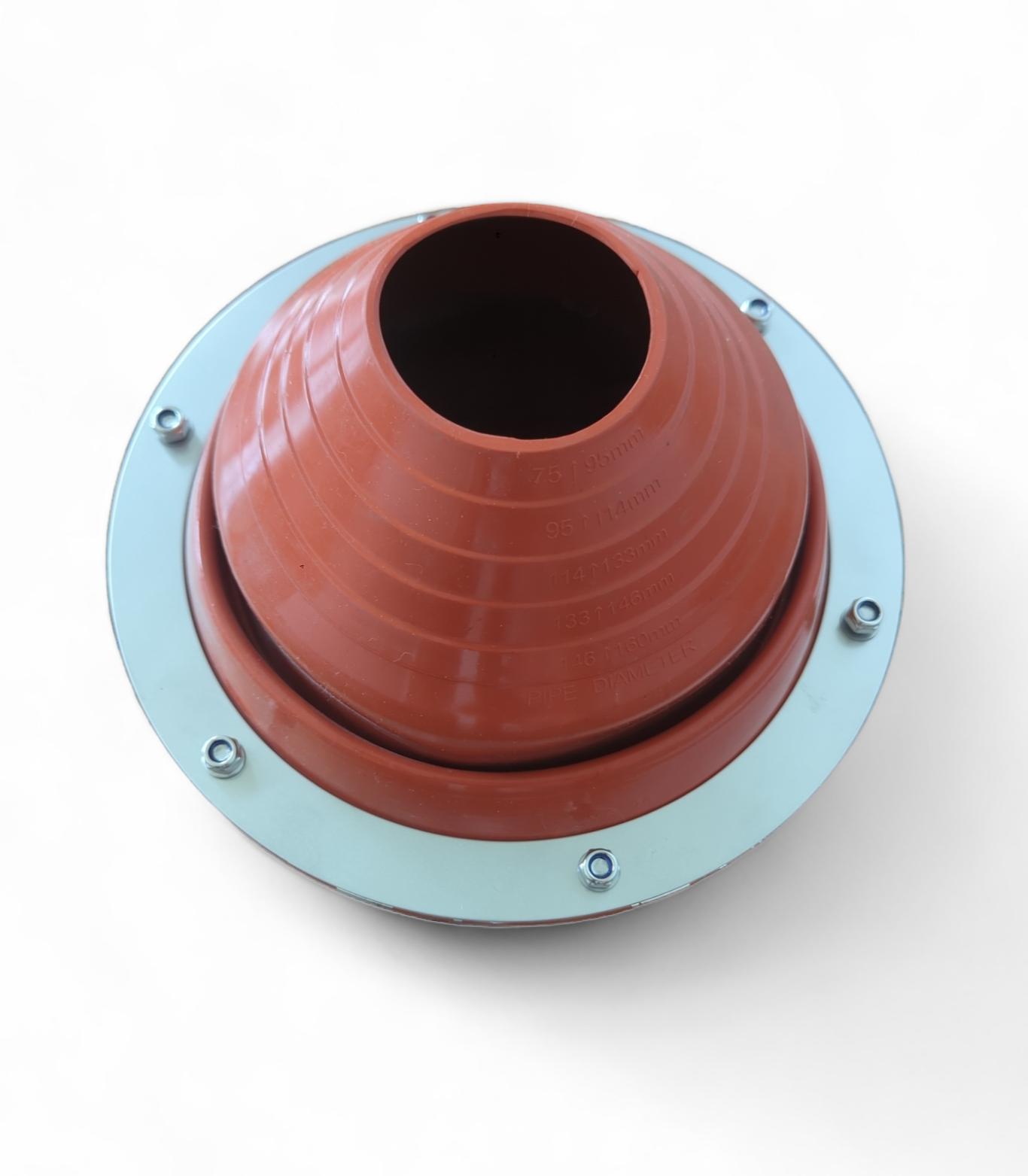

• Orange heatproof silicone collar

• Two attached stainless steel rings for stability

• 6 stainless steel bolts with locking nuts and washers

Specifications

• External diameter: 240mm

• Compatible flue sizes: 75mm to 160mm diameter

• Temperature resistance: Up to 300°C

For detailed installation instructions, download our guide here

Get the right flashing kit for your stove and tent — safer, easier, and designed to last.
